Shimano Ultegra 10-Speed

Part Number	ST-6600
Cable Pull	2.28
Raw Measurement Data	CSV file
Data Video	https://youtu.be/CaO5_VqXcRA
Analysis Video	https://youtu.be/b6UdoiLwwv4

Shift	Shift Spacing
1-2 (most cable pull/easiest gear)	3.44 mm
2-3	2.77 mm
3-4	2.51 mm
4-5	2.35 mm
5-6	2.24 mm
6-7	2.08 mm
7-8	1.92 mm
8-9	2.08 mm
9-10 (least cable pull/hardest gear)	2.40 mm

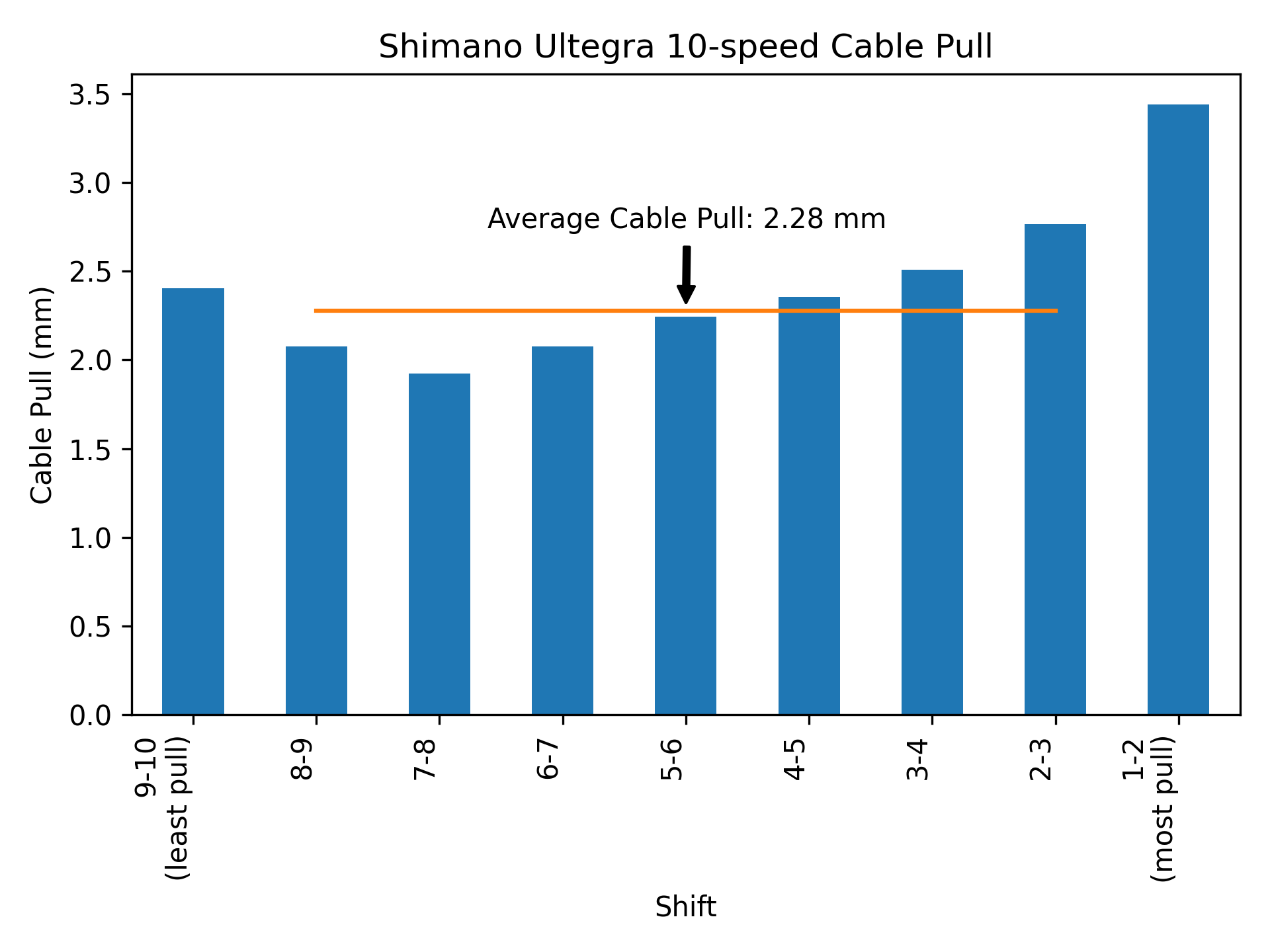

Shift Table

Cable Pull

Positions

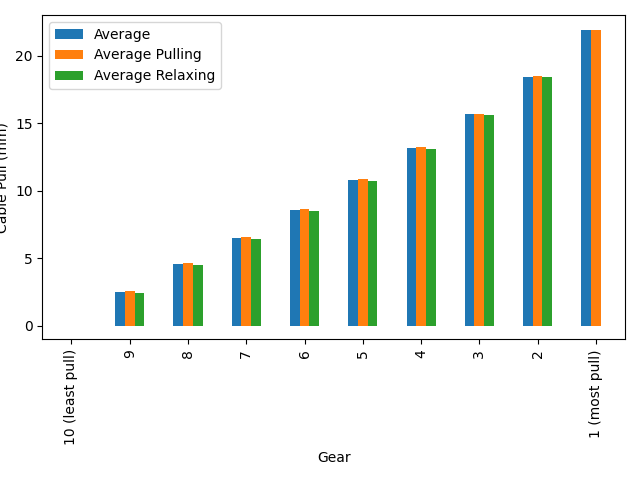

Average cable position at each gear

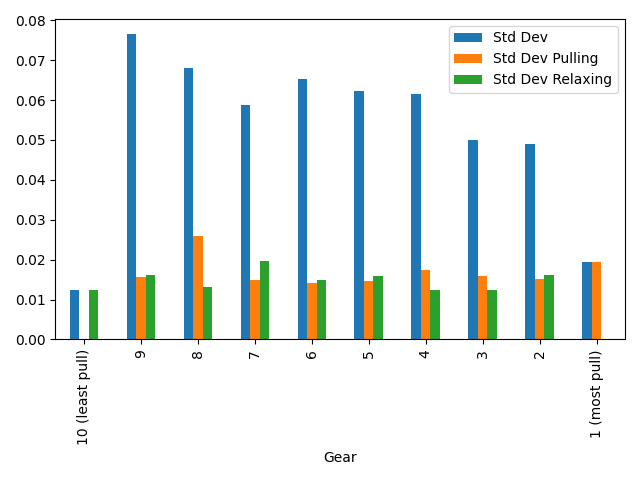

Standard deviation of cable position at each gear

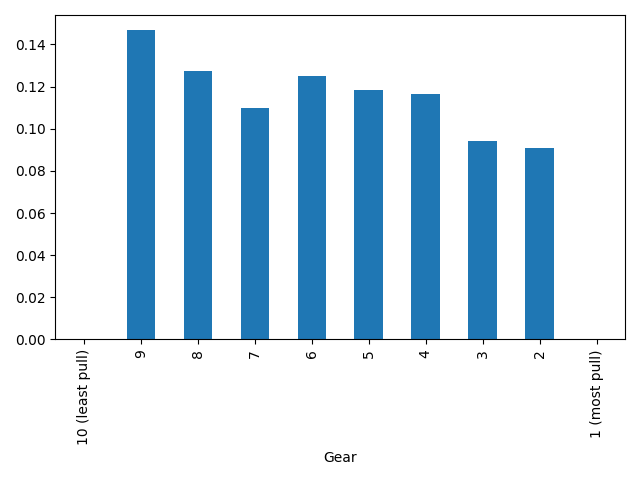

Pulling position minus relaxing position

Shift Amounts

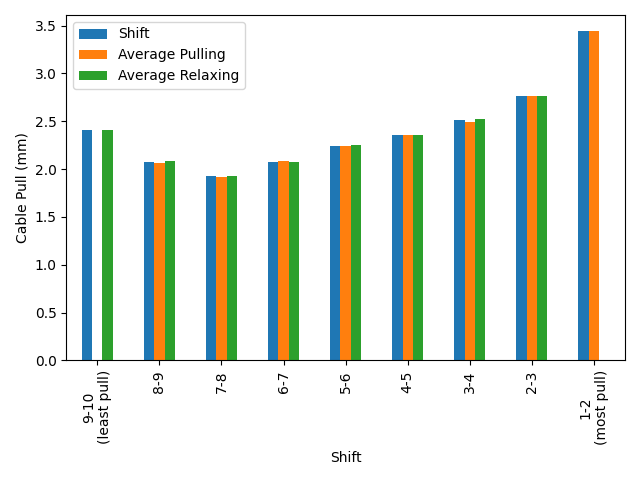

Average cable position change between gears

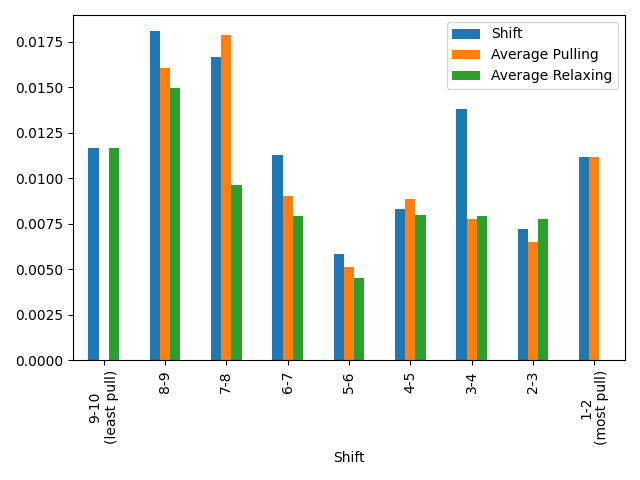

Standard deviation of cable position change between gears

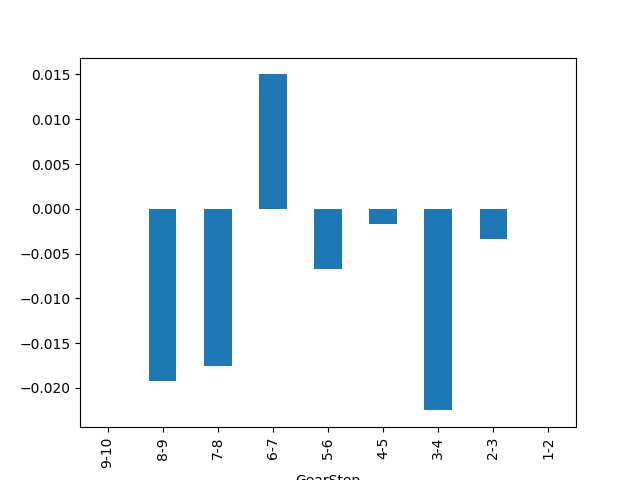

Pulling position change minus relaxing position change
